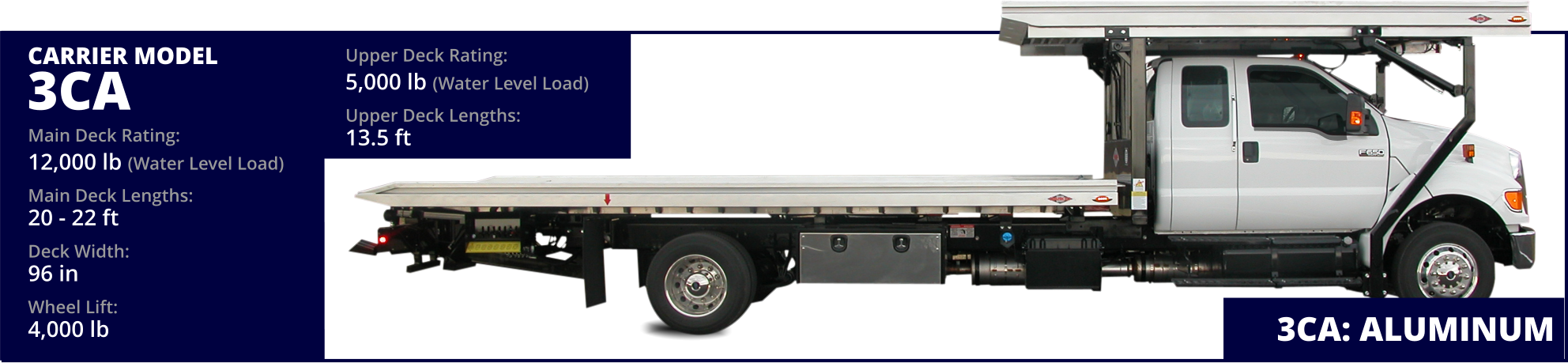

3 CAR CARRIER: 3CA

MAIN DECK

Length

20 ft
21 ft
22 ft

6.10 m
6.40 m
6.71 m

Capacity

12,000 lb

5,443.10 kg

(Water Level Load)

Deck Width

96 in

243.84 cm

Winch

8,000 lb

3,628.74 kg

Cable Length

50 ft

15.24 m

Cable Dia.

3/8 in

0.95 cm

Tie Downs: 2 Front • 2 Middle • 4 Rear
Decking: Extruded Aluminum Decking
Rails: Non-Removable Deck Rails
Deck Finish: Non-Polished

UPPER DECK

Length
Capacity
Width
Winch
Cable Length
Cable Dia.

13.5 ft
5,000 lb
96 in
8,000 lb
75 ft
3/8 in

4.11 m
2,267.96 kg
243.84 cm
3,628.74 kg
22.86 m
0.95 cm

Tie Downs: 4 Front · 2 Middle · 4 Rear
‍Decking: Extruded Aluminum Decking
‍Rails: Non-Removable Deck Rails
‍Deck Finish: Non-Polished

WHEEL LIFT

Lift Capacity
Tow Capacity

4,000 lb
7,500 lb

1,814.37 kg
3,401.94 kg

MAIN DECK

Extruded Aluminum Deck
Non-Polished Deck Finish
Non-Removable Deck Rails
Heavy Duty Approach Plate
Tie Down Key Slots- 2 Front, 4 Middle, 4 Rear
8,000 lb (3,628.74 kg) Ramsey Winch
50 ft (15.24 m) Winch Cable
Anti-Tilt Deck Feature

UPPER DECK

Extruded Aluminum Deck
Non-Polished Deck Finish
Non-Removable Deck Rails
Tie Down Key Slots (4-Front, 2 Middle, 4 Rear)
8,000 lb (3,628.74 kg) Ramsey Winch
75 ft (22.86 m) Winch Cable
Cat Walk on Deck Rails

SUBFRAME

Tubular Subframe
Painted Black Acrylic Enamel
Right & Left Illuminated Control Stations
Dual Counterbalance Valve
High Performance Slide Pads
Rear Safety Chain Storage Pockets
Lift Arm Storage Brackets
Mud Flaps

ELECTRICAL

Federal Standard #108 Lighting
LED Light Package
Weather Resistant Electrical System
Deck & Subframe Junction Boxes
Two Pair of LED Work Lights
Three Pair of Side Marker Deck Lights
Receptacle for Tow Lights
Back-Up Lights & Alarm

HYDRAULICS

Hydraulic Oil Reservoir
10 Micron Oil Filter with Cartridge
Plastic Track System for Hoses and Wires
Extra Length Push-Off Cylinder
Two Power Lift Cylinders (Main Deck)
Two Power Tilt Cylinders (Upper Deck)
Chrome Plated Cylinder Rods

General

Adjustable Deck Hold Downs
Deck Slide Bar
Pivot Point Grease Fittings
Installation Components
Extension Ladder

WHEEL LIFT

4,000 lb (1,814.37 kg) Wheel Lift
Counterbalance Valve
Wheel Grids
Adjustable Lift Arms
Slide-Behind Tire Bars
Strap Hooks
Ball Mount Plate

DECK LENGTH

CAB TO AXLE (CLEAR)

20 ft
21 ft
22 ft

6.10 m
6.40 m
6.71 m

121 - 132 in
133 - 144 in
145 - 156 in

304.80 - 335.28 cm
350.52 - 365.76 cm
381.00 - 396.24 cm

CHASSIS SPECS.

Minimum GVWR
Maximum GVWR
Min. Frame RBM (each rail)
Min Frame Height
Maximum Frame Height
Wheel/Tire Size

26,000 lb *
33,000 lb
600,000 in-lb
29 in
38 in
19.5/22.5 in

11,793.39 kg *
14,968.54 kg

73.66 cm
96.52 cm

OPTIONAL EQUIPMENT

PTO & Pump Options
102" (259.08 cm) Main Deck Only
Removable Main Deck Rails Only
Polished Deck Rails
Additional Tie Down Key Slots
Additional Side Marker Lights
Additional Work Lights
Wireless Winch Remote (Upper Deck)
Winch Free Spool (Air Shift)
Various Tool Box Options

Wheel Simulators
Hub Covers for Aluminum Alcoas
Stainless Steel Quarter Fenders
V-Chain with Cluster Hooks
Safety Chains with Cluster Hooks
Magnetic Tow Lights
Four Point Tie Down System
Wheel Lift Strap System
Beacon Lights
Factory Installation

UPPER DECK OPTIONS

Four Point Bonnet-Style Tie Down System
