MANUFACTURER • GREENCASTLE, PA

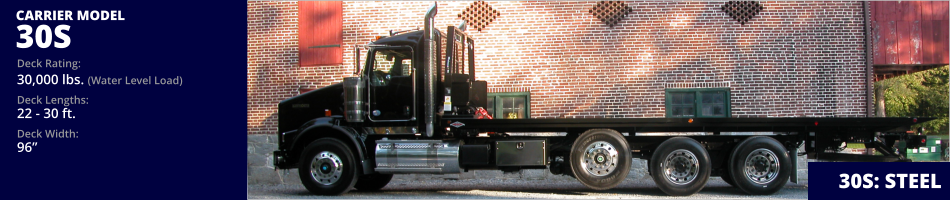

INDUSTRIAL 30S

DECK

Length

22 ft
24 ft
26 ft
28 ft
30 ft

6.71 m
7.32 m
7.92 m
8.53 m
9.14 m

Deck Capacity

30,000 lb

13,607.76 kg

(Water Level Load)

Deck Width
Decking
Winch
Cable Length
Cable Dia.

96 in
1/4 in
20,000 lb
50 ft
9/16 in

243.84 cm
0.64 cm
9,071.84 kg
15.24 m
1.43 cm

Deck Surface: Diamond Plate
Tie Downs:
4 Front • 4 Rear
Stake Pockets: Full Length
Finish: Painted Black Acrylic Enamel

DECK
  • 1/4 in (0.64 cm) Steel Diamond Decking
  • 8 in (20.32 cm) Crossmember Spacings
  • Standard Paint Color (Black)
  • Full Length Stake Pockets
  • Standard Paint Color (Black)
  • Undercoat on Under-Side of Deck
  • Heavy Duty Approach Plate
  • Tie Down Key Slots (4-Front, 4 Rear)
  • Right & Left Deck Chain Trays
  • 20,000 lb (9,071.84 kg) Planetary Winch
  • 50 ft (15.24 m) Winch Cable
  • Cable Roller Tensioner
  • Air Shift Winch Free Spool
  • Anti-Tilt Deck Feature
SUBFRAME
  • Tubular Subframe
  • Painted Black Acrylic Enamel
  • Right & Left Illuminated Control Stations
  • Dual Counterbalance Valve
  • High Performance Slide Pads
  • Mud Flaps
ELECTRICAL
  • Federal Standard #108 Lighting
  • LED Light Package
  • Weather Resistant Electrical System
  • Deck & Subframe Junction Boxes
  • Back-Up Lights & Alarm
HYDRAULICS
  • Hydraulic Oil Reservoir
  • 10 Micron Oil Filter with Cartridge
  • Plastic Track System for Hoses and Wires
  • Extra Length Push-Off Cylinder
  • Two Power Lift Cylinders
  • Chrome Plated Cylinder Rods

GENERAL

  • Adjustable Deck Hold Downs
  • Slide Bar on Decks Greater 20 ft (6.10 m)
  • Lubrication Fitting at Pivot Points
  • Installation Components
DECK LENGTH

22 ft
24 ft
26 ft
28 ft
30 ft

6.71 m
7.32 m
7.92 m
8.53 m
9.14 m

CAB TO TANDEM (CLEAR)

114 - 120 in
138 - 144 in
162 - 168 in
186 - 192 in
210 -216 in

289.56 - 304.80 cm
350.52 - 365.76 cm
411.48 - 426.72 cm
472.44 - 487.68 cm
533.40 - 548.64 cm

CHASSIS SPECS

Minimum GVWR
Min. Frame RBM (each rail)
Min Frame Height
Maximum Frame Height

50,000 lb
3,000,000 in-lb
38 in
46 in

22,679.60 kg

96.52 cm
116.84 cm

OPTIONS
  • PTO & Pump Options
  • 102" (259.08 cm) Deck Width
  • Deck Tie Down Key Slots
  • Smooth Decking
  • Rumber Decking
  • Hard Wood Decking
  • Steel Diamond Plate Over Wood
  • Smooth Steel Over Wood
  • Removable Deck Rails
  • Anti-Skid Deck Surface
  • Full Height Bolt-On Cab Protector
  • Aluminum Bolt-On Cab Protector
  • Enclosed Cab Protector at Bottom
  • Frame-Mounted Cab Protector
  • Screen in Cab Protector
  • 30,000 lb (13,607.76 kg) Planetary Winch
  • Marker Light Package in Cab Protector
  • Industrial Weld-On Cab Protector
  • Additional Side Marker Lights
  • Chrome Bezel Marker Lights
  • Whelen 10 Head LED Justice Light Bar
  • Customer-Supplied Light Bar
  • Light Bar Switch Panel
  • Wireless Winch Remote
  • Various Tool Box Options
  • LED Work Light
  • Dual Propane Tank Holders with Chain Rack
  • D-Rings
  • Forklift Guard (Heavy Duty Bumper)
  • Folding Deck Ladder
  • Locking Chain Bars
  • Rub Rail w/ Stake Pockets
  • Hydraulic Stabilizer Bar
  • Multiple Hitch Options
  • Factory Installation
DOWNLOADS*
30S - Literature



Looking for an Operator Manual? Please contact Sales or Parts & Service for your Operator Manual.
Manuals are available for operator/owners and are not available for download.
*Adobe Reader or another PDF program needed to view downloads.
30S GALLERY (Click to enlarge)

IMPORTANT: Gross vehicle rating limitation must be considered. Ratings are based on structural factors only, not chassis capacity. Danco's body ratings are based on a water level capacity. Danco specifications shown are approximations and may vary depending on chassis selected. Prices and product specifications are subject to change without notice. Consult with state and local laws for the maximum vehicle lengths allowed. Optional equipment may be shown in photographs and may not be part of the standard package. Optional upgrade prices not included in standard pricing. See dancoproducts.com for a more complete list of specifications. * Optional upgrade prices not included in standard pricing. All prices are installed, Freight on Board Greencastle, PA
