MANUFACTURER • GREENCASTLE, PA

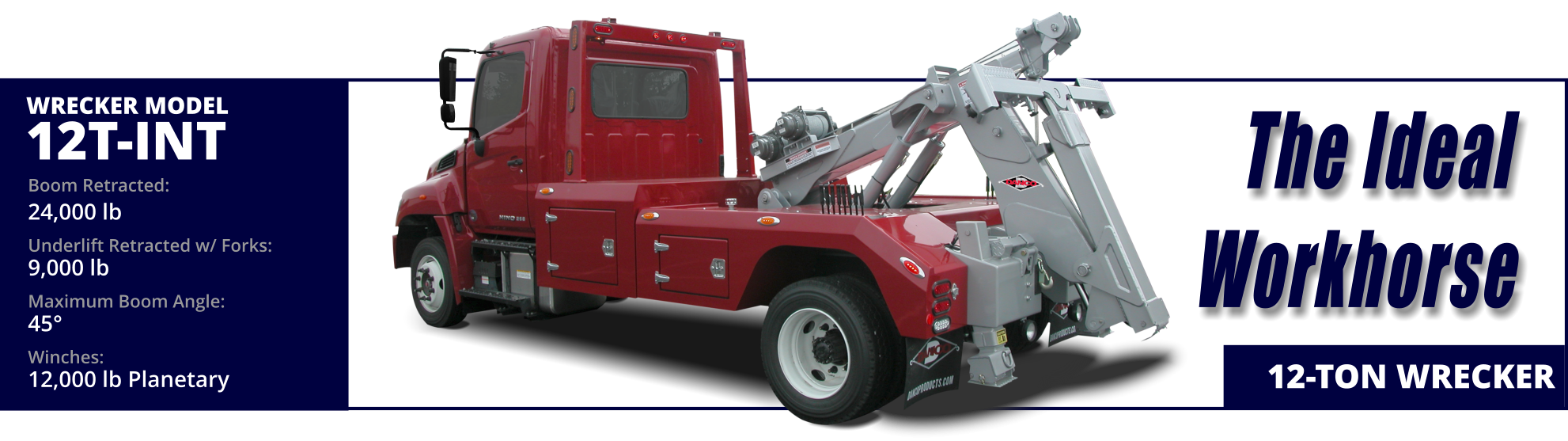

WRECKER: 12T-INT

RECOVERY BOOM

Retracted
Extended
Range of Elevation

24,000 lb
10,000 lb
45 degree

10,886.21 kg
4,535.92 kg

Lift Height From Ground to Hook at Maximum Elevation

Retracted
Extended

112 in
156-1/2 in

284.48 cm
397.51 cm

Reach Past Tail-Board Minimum Elevation

Retracted
Extended

36-3/4 in
92-3/4 in

93.35 cm
235.59 cm

Reach Past Tail-Board Maximum Elevation

Extended

43-1/2 in

110.49 cm

WINCH & CABLES

Winch Rating: 1st Layer of Each Drum/Winch

12,000 lb

5,443.10 kg

Cable Diameter & Length Each Drum

Diameter
Length

7/16 in
100 ft

1.11 cm
30.48 m

UNDERLIFT

Wheel Lift Rating

Retracted w/ Forks
Extended w/ Forks
Extended w/ Lift Arms

9,000 lb
6,000 lb
5,000 lb

4,082.33 kg
2,721.55 kg
2,267.96 kg

Range of Tilt

Up
Down

100 degree
15 degree

Distance From Bumper to Center Line of Crossbar

Retracted
Extended

47-1/2 in
76 in

120.65 cm
193.04 cm

Distance From Bumper to Center Line of Grid

Retracted
Extended

61-1/2 in
90 in

156.21 cm
228.60 cm

Distance From Center Line of Rear Axle to Bumper

36 in

91.44 cm

Tow Hitch Rating

7,500 lb

3,401.94 kg

INTEGRATED BOOM & UNDER LIFT
  • Integrated Boom and Underlift System
  • Dual Power Boom Elevation Cylinders
  • 360 degree Boom End Swivel
  • Winch Cable Tie Backs
  • Self Centering Crossbar
  • Wheel Lift Grids
  • (2) T-Bar Wheel Lift Extensions
  • Adjustable Lift Arms
  • Slide-Behind Tire Bars
  • Strap Hooks
  • (2) Frame Fork Receivers
  • (2) 3 in. (7.62 cm) Wide Frame Forks
  • (2) Self Aligning Spring Forks
  • Trailer Hitch Adapter
WINCHES & CABLES
  • (2) 12,000 lb (5,443.10 kg) Planetary Winches
  • Cable Tensioners
  • Manual Shift Winch Free Spool Lever
  • 100 ft (30.48 m) Winch Cable
SUBFRAME
  • 60 in (152.40 cm) Cab to Axle Sub-Frame
  • Right & Left Manual Controls
  • Control Rods & Linkages (Not Cables)
  • Dual Rear Hydraulic Stiff Legs
  • Adjustable Stiff Leg Feet
  • Low-mount D-Rings
  • (2) Rear Chain Anchors
  • (2) Tailboard Chain Storage Compartments
  • Rear Lift Arm Storage Pockets
ALUMINUM MODULAR BODY
  • 60 in (152.40 cm) Modular Aluminum Body
  • Body Width 96 in (243.84 cm)
  • Right & Left Tool Compartments
  • Frame Fork Holders
  • Rear Enclosed Wheel Wells
  • Contour Fender Design
  • Rotary T-Handle Style Latches
  • Chrome Finished Flush Mount Hinges
  • Full Height Aluminum Enclosed Pylon
HYDRAULICS
  • Hydraulic Oil Reservoir
  • 10 Micron Oil Filter with Cartridge
  • Chrome Plated Cylinder Rods
  • Counterbalance Valves
ELECTRICAL
  • Federal Standard #108 Lighting
  • LED Light Package
  • LED Marker Light Package in Body & Pylon
  • Weather Resistant Electrical System
  • Junction Box & Wiring Harness
  • Tool Box Lighting
  • (1) Pair Low Mount LED Work Lights
  • Back-Up Lights & Alarm
  • Receptacle for Tow Lights
GENERAL
  • Lubrication Fitting at Pivot Points
  • Installation Components
CHASSIS SPECS

Minimum GVWR
Maximum GVWR

21,000 lb
31,000 lb

9,525.43 kg
14,061.35 kg

Minimum Cab To Axle
24 in (60.96 cm) Tunnel Box
48 in (121.92 cm) Tunnel Box
Maximum Frame Height
Maximum Tire Size

60 in
84 in
108 in
38 in
225/70R22.5

152.40 cm
213.36 cm
274.32 cm
96.52 cm

OPTIONAL EQUIPMENT
  • Clutch Pump or PTO/Pump Options
  • Planetary Winches
  • Winch Free Spool Air Shift
  • Aluminum Tunnel Tool Box
  • Whelen 10 Head LED Justice Light Bar
  • Customer Supplied Light Bar
  • Additional Work Lights
  • LED Light Package in Pylon
  • Rear View Video Camera
  • Light Bar Switch Panel
  • Magnetic Tow Lights
  • Front Push Bumper with Grill Guard
  • Wheel Simulators
  • Factory Paint
  • Combination 5th Wheel Adapter
  • Safety Chains with Cluster Hooks
  • Wheel Lift Strap System
  • Tow Dollies and Brackets
  • Fire Extinguisher
  • Safety Triangle Kit
  • Flares
  • Factory Installation
DOWNLOADS*
12T-INT Literature


Looking for an Operator Manual? Please contact Sales or Parts & Service for your Operator Manual.
Manuals are available for operator/owners and are not available for download.
*Adobe Reader or another PDF program needed to view downloads.
12T-INT GALLERY (Click to enlarge)

IMPORTANT:    **Gross vehicle rating limitation must be considered. Ratings are based on structural factors only, not chassis capacity. Danco specifications shown are approximations and may vary depending on chassis selected. Danco's body ratings are based on a water level capacity. Product specifications are subject to change without notice. Some optional equipment may be shown in photographs. Optional upgrade prices not included in standard pricing. All prices are installed, Freight on Board Greencastle, PA
