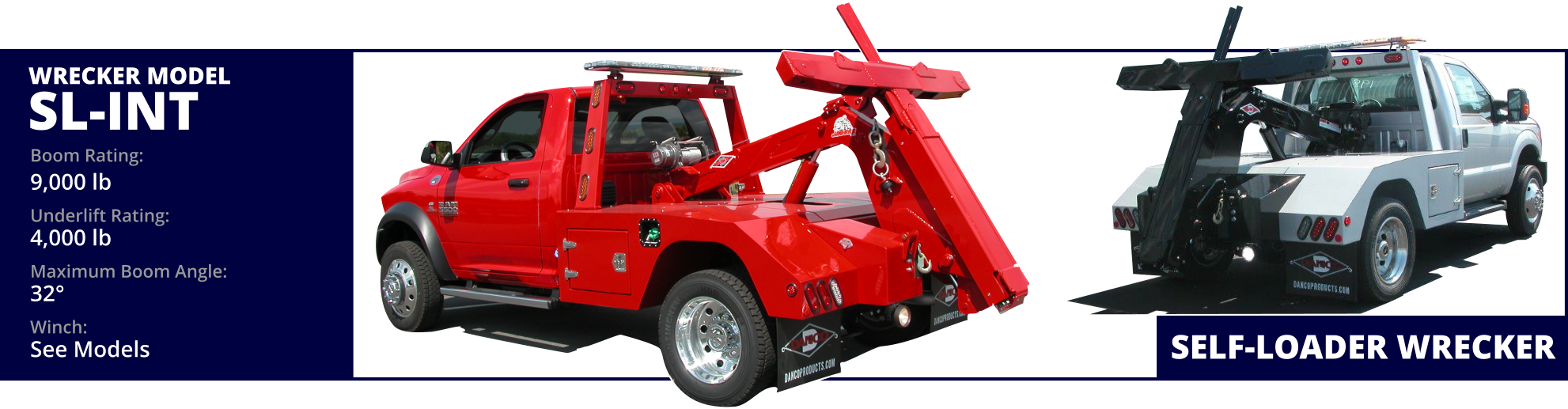

WRECKER: SL-INT (Self-Loader)

MODELS

SL-INT

Basic Self-Loader Package
(No Winch Option)

Recovery Boom
Range of Elevation

9,000 lb
32 degree

4,082.33 kg

SL-INT-W

Worm Gear Winch

Recovery Boom
Range of Elevation
Winch
Winch Cable
Diameter
Length

9,000 lb
32 degree
8,000 lb

3/8 in
75 ft

4,082.33 kg

3,628.74 kg

0.95 cm
22.86 m

SL-INT-P

Planetary Winch

Recovery Boom
Range of Elevation
Winch
Winch Cable
Diameter
Length

9,000 lb
32 degree
9,000 lb

3/8 in
75 ft

4,082.33 kg

3,628.74 kg

0.95 cm
22.86 m

UNDERLIFT

Extended

4,000 lb

1,814.37 kg

Range of Tilt

Up
Down

105 degree
20 degree

Distance From Bumper to Center Line of Grid

Retracted
Extended

62 in
91-5/8 in

157.48 cm
232.73 cm

Center Line of Rear Axle to Bumper

36 in

91.44 cm

Tow Hitch Rating

7,500 lb

3,401.94 kg

SL-INT
  • Basic Self-Loader (No Winch Package)
SL-INT-W
  • 8,000 lb (3,628.74 kg) Worm Gear Winch
  • 75 ft (22.86 m) Winch Cable
  • Cable Tensioner
  • Manual Shift Winch Free Spool Lever
SL-INT-P
  • 9,000 lb (4,082.33 kg) Planetary Winch
  • 75 ft (22.86 m) Winch Cable
  • Cable Tensioner
  • Manual Shift Winch Free Spool Lever
INTEGRATED BOOM & UNDER LIFT
  • Integrated Boom and Underlift System
  • Self-Loading Wheel Lift System
  • 180 degree Pivoting Crossbar
  • Self Centering Cossbar
  • Trailer Hitch Adapter
  • Lanyard Wheel Lift & Winch Control
  • Trailer Hitch Adapter
ALUMINUM MODULAR BODY
  • 60 in (152.40 cm) Modular Aluminum Body
  • Body Width 96 in (243.84 cm)
  • Right & Left Tool Compartments
  • Rear Enclosed Wheel Wells
  • Contour Fender Design
  • Rotary T-Handle Style Latches
  • Chrome Finished Flush Mount Hinges
  • Full Height Aluminum Enclosed Pylon
  • Mud Flaps
SUBFRAME
  • 60 in (152.40 cm) Cab to Axle Sub-Frame
  • (2) Rear Chain Anchors
  • (2) Tailboard Chain Storage Compartments
ELECTRICAL
  • Federal Standard #108 Lighting
  • LED Light Package
  • Weather Resistant Electrical System
  • Junction Box & Wiring Harness
  • (1) Pair Low Mount LED Work Lights
  • Back-Up Lights & Alarm
  • Receptacle for Tow Lights
HYDRAULICS
  • Hydraulic Oil Reservoir
  • 10 Micron Oil Filter with Cartridge
  • Chrome Plated Cylinder Rods
  • Counterbalance Valves
  • Manual Hydraulic Override
GENERAL
  • Lubrication Fitting at Pivot Points
  • Installation Components
CHASSIS SPECS

Minimum GVWR
Maximum GVWR

14,500 lb
26,000 lb

6,577.08 kg
11,793.39 kg

Minimum Cab To Axle
24 in (60.96 cm) Tunnel Box
Maximum Frame Height

60 in
84 in
36 in

152.40 cm
213.36 cm
91.44cm

OPTIONAL EQUIPMENT
  • Clutch Pump or PTO/Pump Options
  • Planetary Winches
  • Winch Free Spool Air Shift
  • Aluminum Tunnel Tool Box
  • Light Bar (10 Head LED)
  • Customer Supplied Light Bar
  • Additional Work Lights
  • LED Light Package in Pylon
  • Rear View Video Camera
  • Light Bar Switch Panel
  • Magnetic Tow Lights
  • Fold Down Light Bar Bracket
  • Front Push Bumper with Grill Guard
  • Wheel Simulators
  • Factory Paint
  • Safety Chains with Cluster Hooks
  • Wheel Lift Strap System
  • Tow Dollies and Brackets
  • Fire Extinguisher
  • Safety Triangle Kit
  • Flares
  • Factory Installation
DOWNLOADS*
SL-INT Dodge LiteratureSL-INT Ford Literature


Looking for an Operator Manual? Please contact Sales or Parts & Service for your Operator Manual.
Manuals are available for operator/owners and are not available for download.
*Adobe Reader or another PDF program needed to view downloads.
SL-INT GALLERY (Click to enlarge)

IMPORTANT:    **Gross vehicle rating limitation must be considered. Ratings are based on structural factors only, not chassis capacity. Danco specifications shown are approximations and may vary depending on chassis selected. Danco's body ratings are based on a water level capacity. Product specifications are subject to change without notice. Some optional equipment may be shown in photographs. Optional upgrade prices not included in standard pricing. All prices are installed, Freight on Board Greencastle, PA

FEATURES
